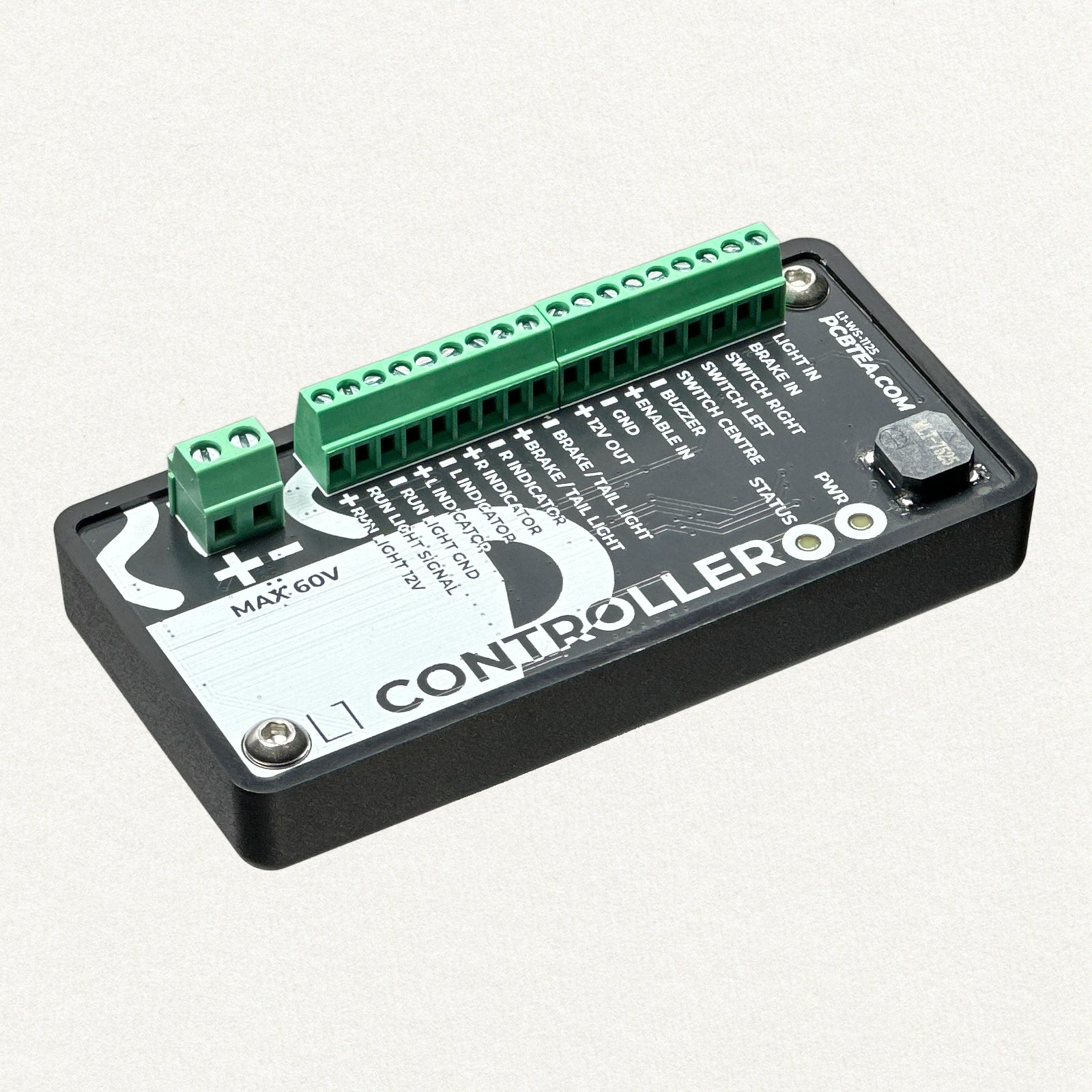

![L1 Controller [WS2815]](//pcbtea.com/cdn/shop/files/product_corner_view_1600px.webp?v=1751327923&width=1946)
![L1 Controller [WS2815]](http://pcbtea.com/cdn/shop/files/product_corner_view_1600px.webp?v=1751327923&width=1946)

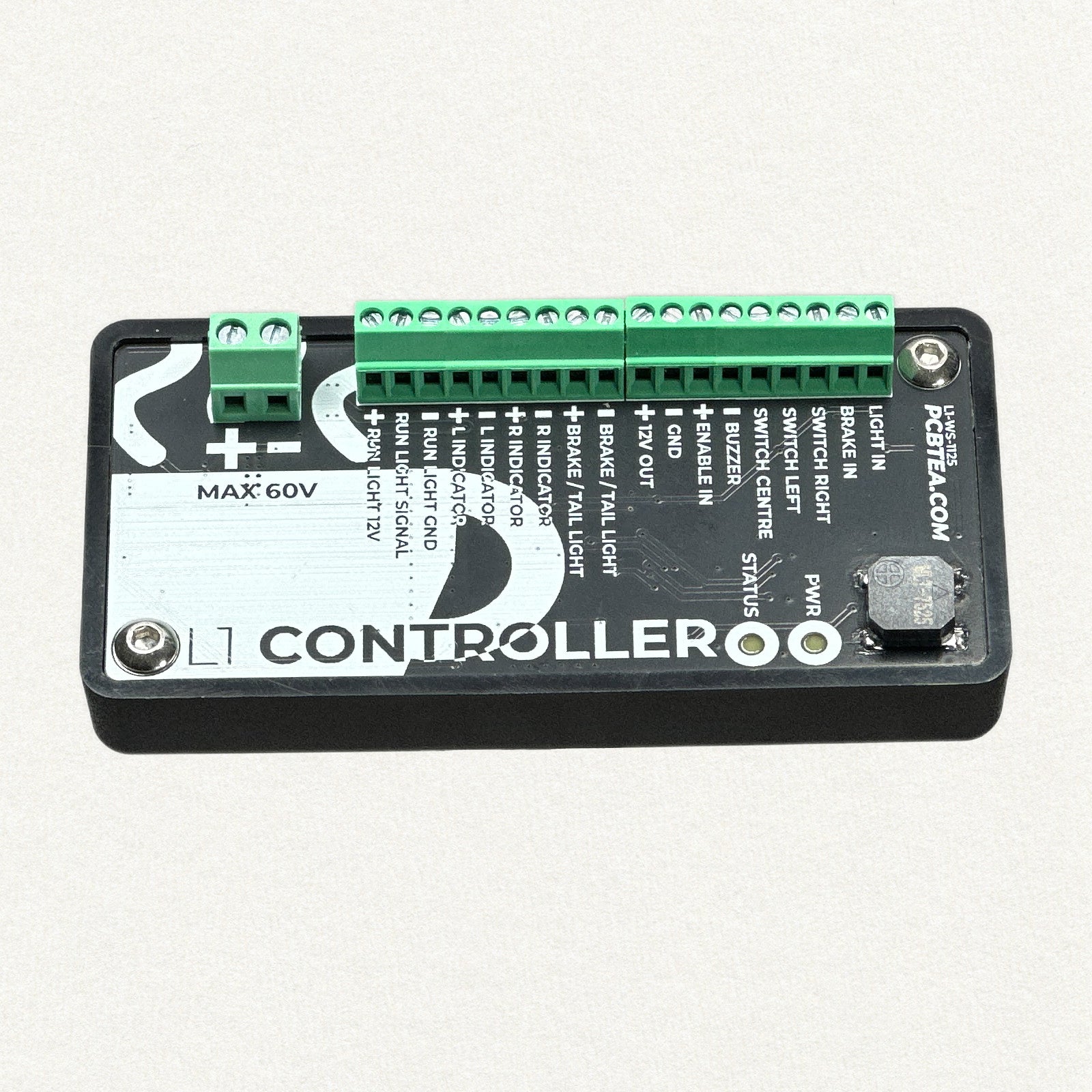

![L1 Controller [WS2815]](http://pcbtea.com/cdn/shop/files/product_top_side_1600px.webp?v=1751327923&width=1946)
L1 Controller [WS2815]
$149.00
Pickup currently not available
Reliable shipping
Flexible returns
The L1 CONTROLLER is a compact, innovative lighting controller designed to improve both the safety and aesthetics of personal electric vehicles, including scooters and bikes.
Compatible with factory-installed or fully custom lighting setups, it seamlessly integrates with your vehicle’s electrical system—offering enhanced control over turn signals, taillights, and running lights.

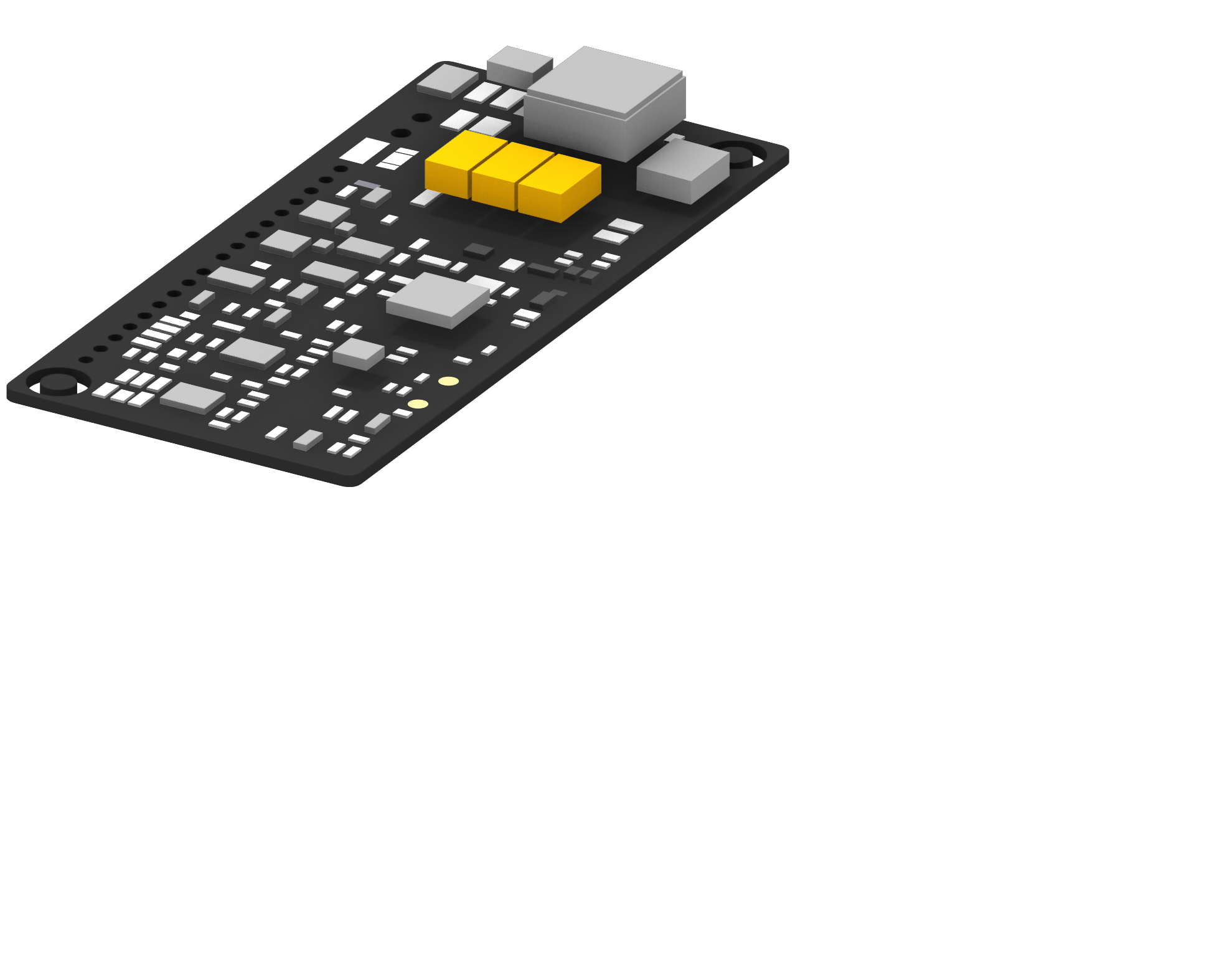

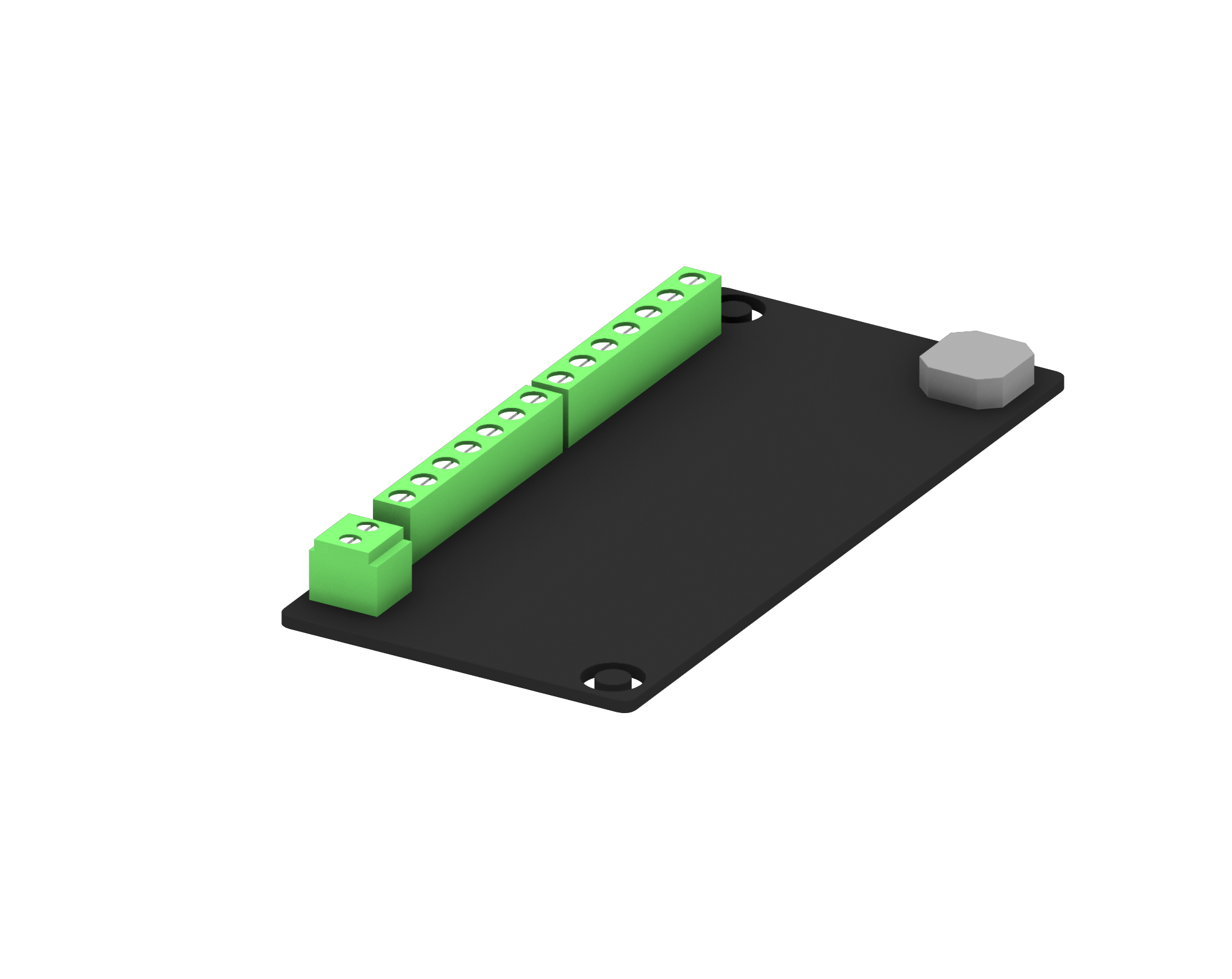

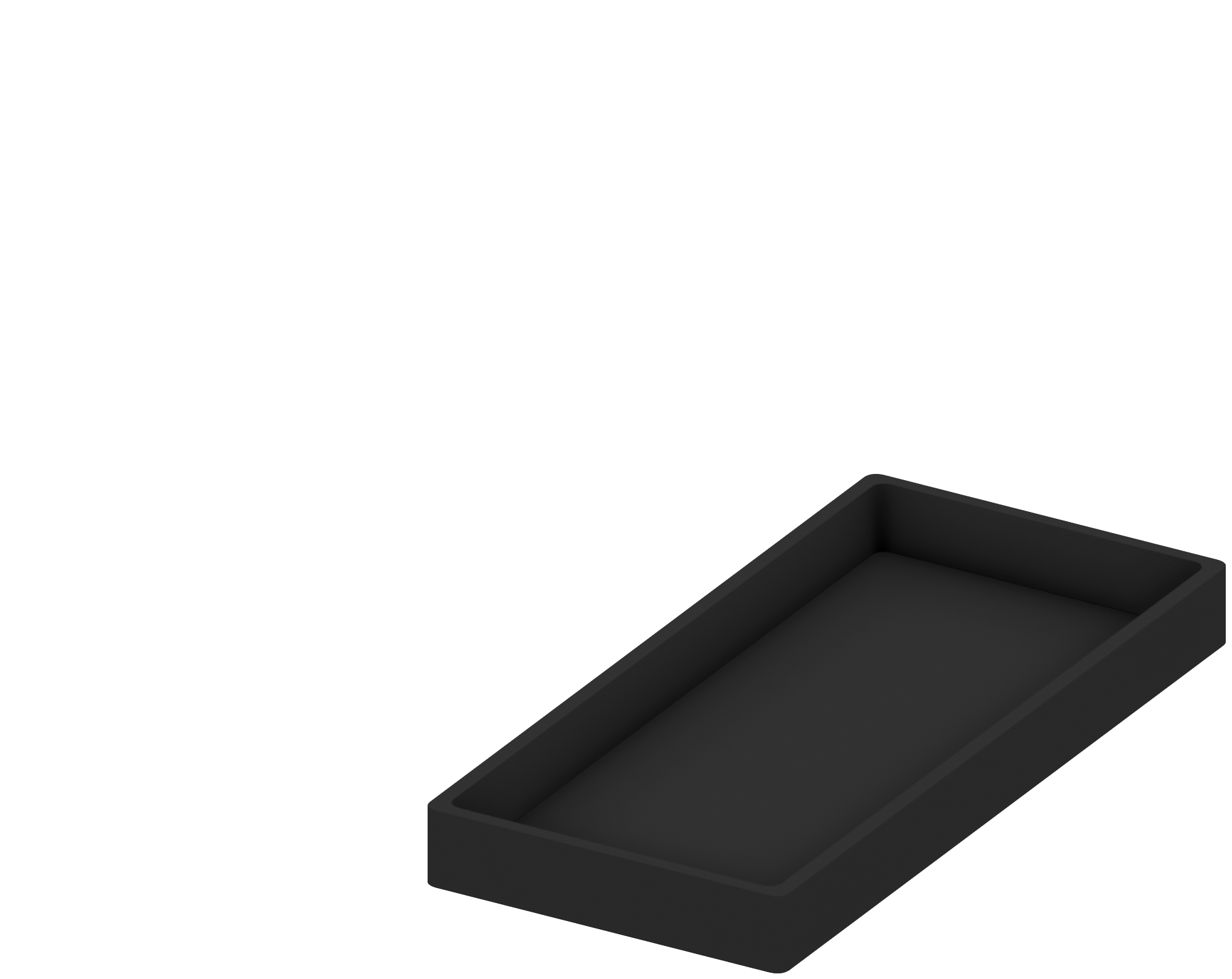

See what's inside
POWER SUPPLY
Regulated 12V output for your accessories
CPU
64 Megahertz Central Processing Unit delivers responsive performance and seamless visual effects
IMU
Inertial Measurement Unit delivers high-precision real-time motion tracking
_
With its unique TurnSense™ technology, the L1 CONTROLLER offers intelligent indicator control. It automatically tracks your vehicle’s movement and direction, ensuring the indicators turn off once you've completed a turn, eliminating the need to manually switch them off.
Specifications
POWER
- 12V to 60V input voltage (configuration dependant).
- No standby battery drain! (32uA maximum current draw when disabled).
- No standby battery drain! (32uA maximum current draw when disabled).
INPUTS
- Tail light and head light sense 60V tolerant (0-12V sense range).
- 5V enable signal (60V tolerant).
- Turn signal switched to ground.
- 5V enable signal (60V tolerant).
- Turn signal switched to ground.
OUTPUT
Running light:
- Compatible only with WS2815 protocol RBG LED strips.
- Maximum output current 0.5A.
- Maximum strip length 500 LEDs (dynamic brightness limit).
Regulated 12V:
- 0.5A nominal (current limited, short circuit protected).
- Compatible only with WS2815 protocol RBG LED strips.
- Maximum output current 0.5A.
- Maximum strip length 500 LEDs (dynamic brightness limit).
Regulated 12V:
- 0.5A nominal (current limited, short circuit protected).
ENVIRONMENT
- Moisture resistant (potted PCB).
- Ambient temperature range -15°C to 40°C.
- Ambient temperature range -15°C to 40°C.
PHYSICAL
- Must be mounted face up or down for TurnSense to function.
- Dimensions 80mm (L) x 40mm (W) x 20mm (H).
- Dimensions 80mm (L) x 40mm (W) x 20mm (H).
